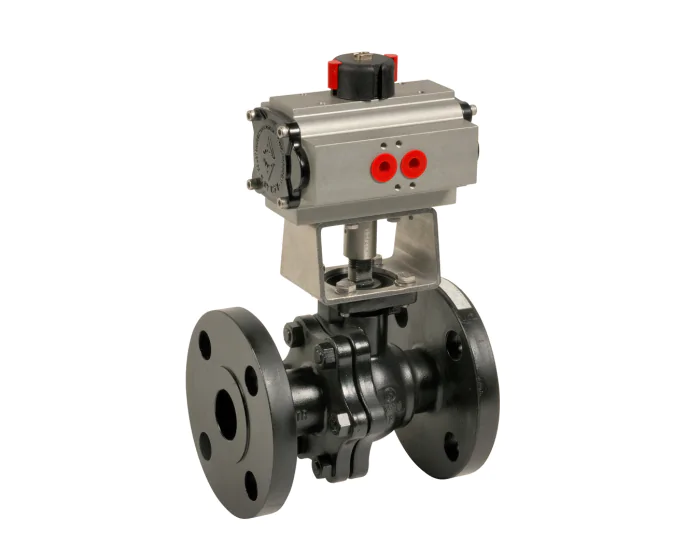

ICP Valves carbon steel ball valve 768 ANSI 300 + ADA/ASR pneumatic actuator
€291.71
(excl. btw)
The 768 series carbon steel ball valve has an A216WCB body and a CF8M ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN150.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Operating angle (°)
90
Shaft/stem matérial
Stainless steel 316
Adjustable limit screws
Yes
ATEX compatible
Yes
DN
DN15 - 1/2''
Body material
Carbon steel A216 WCB (1.0619)
ATEX protection mode
Ex c
Number of ways
2
Bore
Full
Packing gland
Graphite
PS (bar)
50
Connections
Flanged #300 PN50
Seats
PTFE
Ball material
Stainless steel 316
Surface temperature
TX
Pneumatic actuator type
Double acting
Ball valve design
2-piece body
Warranty period
1 year
CE
Risk category III
Range
Petrochemicals
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
2869
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting
274342015100
S1002861
€291.71
(excl. btw)
add to cart
2870
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return
274342016101
S1002862
€326.40
(excl. btw)
add to cart
2871
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting
274343015101
S1002863
€308.04
(excl. btw)
add to cart
2872
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return
274343016102
S1002864
€362.10
(excl. btw)
add to cart
2873
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting
274344015101
S1002865
€351.51
(excl. btw)
add to cart
2874
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return
274344016102
S1002866
€403.69
(excl. btw)
add to cart
2875
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Double acting
274346015101
S1002867
€432.16
(excl. btw)
add to cart
2876
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return
274346016103
S1002868
€504.77
(excl. btw)
add to cart
2877
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting
274347015103
S1002869
€561.00
(excl. btw)
add to cart
2878
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Spring return
274347016104
S1002870
€618.59
(excl. btw)
add to cart
2879
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Double acting
274349015105
S1002871
€1,030.20
(excl. btw)
add to cart
2880
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return
274349016106
S1002872
€1,162.80
(excl. btw)
add to cart
2881
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Double acting
274350015105
S1002873
€1,432.09
(excl. btw)
add to cart
2882
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Spring return
274350016107
S1002874
€1,794.87
(excl. btw)
add to cart
2883
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Double acting
274352015107
S1002875
€2,892.71
(excl. btw)
add to cart
2884
Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return
274352016108
S1002876
€3,302.57
(excl. btw)
add to cart
